Reconstruction of an administrative building — 1 708 m², 36 sheets
A brick administrative building with a mansard roof taken from as-built survey through to issued-for-construction drawings, with the full multidisciplinary set coordinated as Chief Project Engineer.
Scope and output
An existing brick administrative building with a mansard roof, taken through full reconstruction documentation — from as-built survey to issued-for-construction drawings. The brief covered facade repair and repainting, roof and waterproofing replacement, selective demolition and rebuilding of partitions, new floor and ceiling finishes throughout, and full M&E system replacement (water supply, electrical, ventilation).

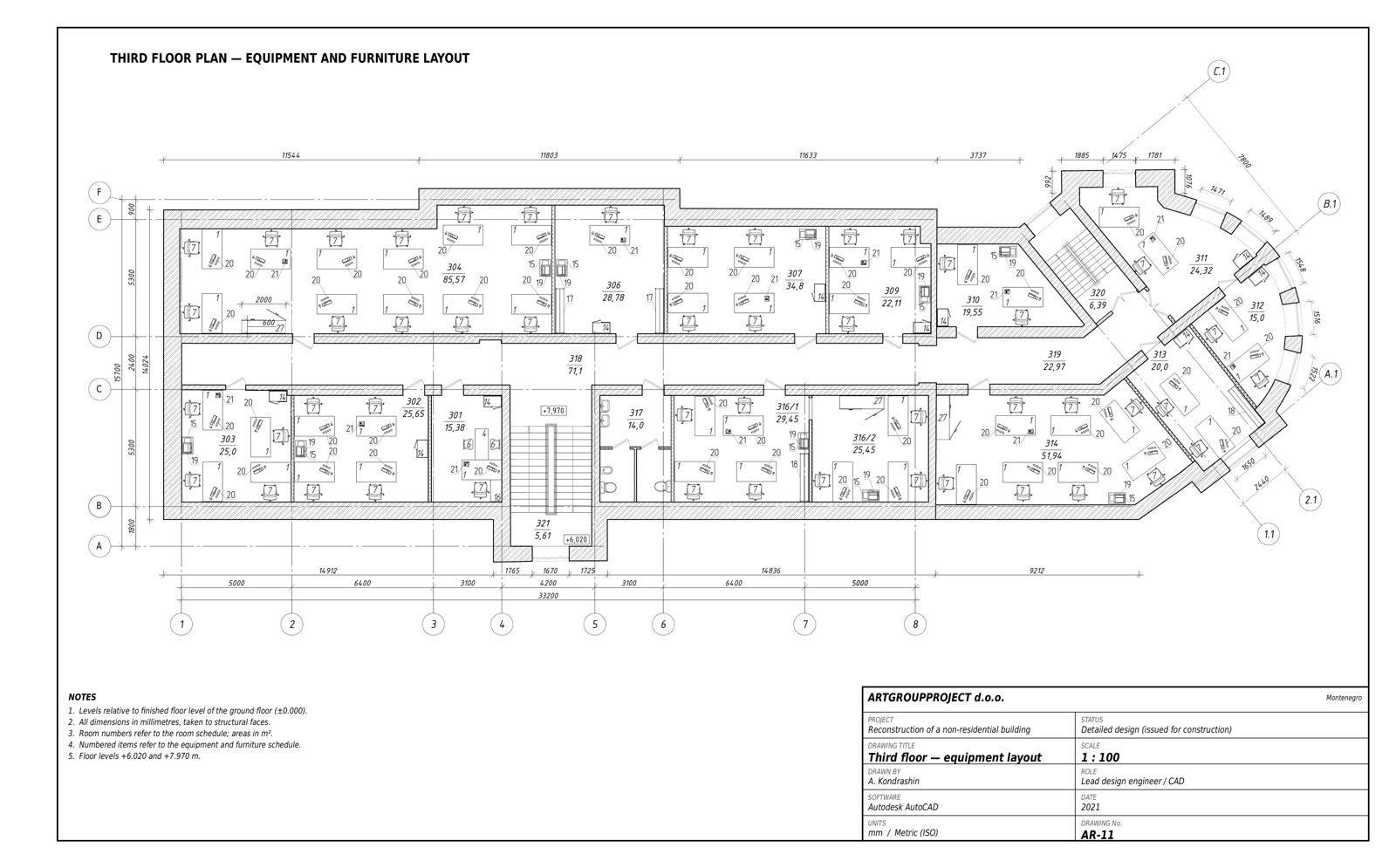

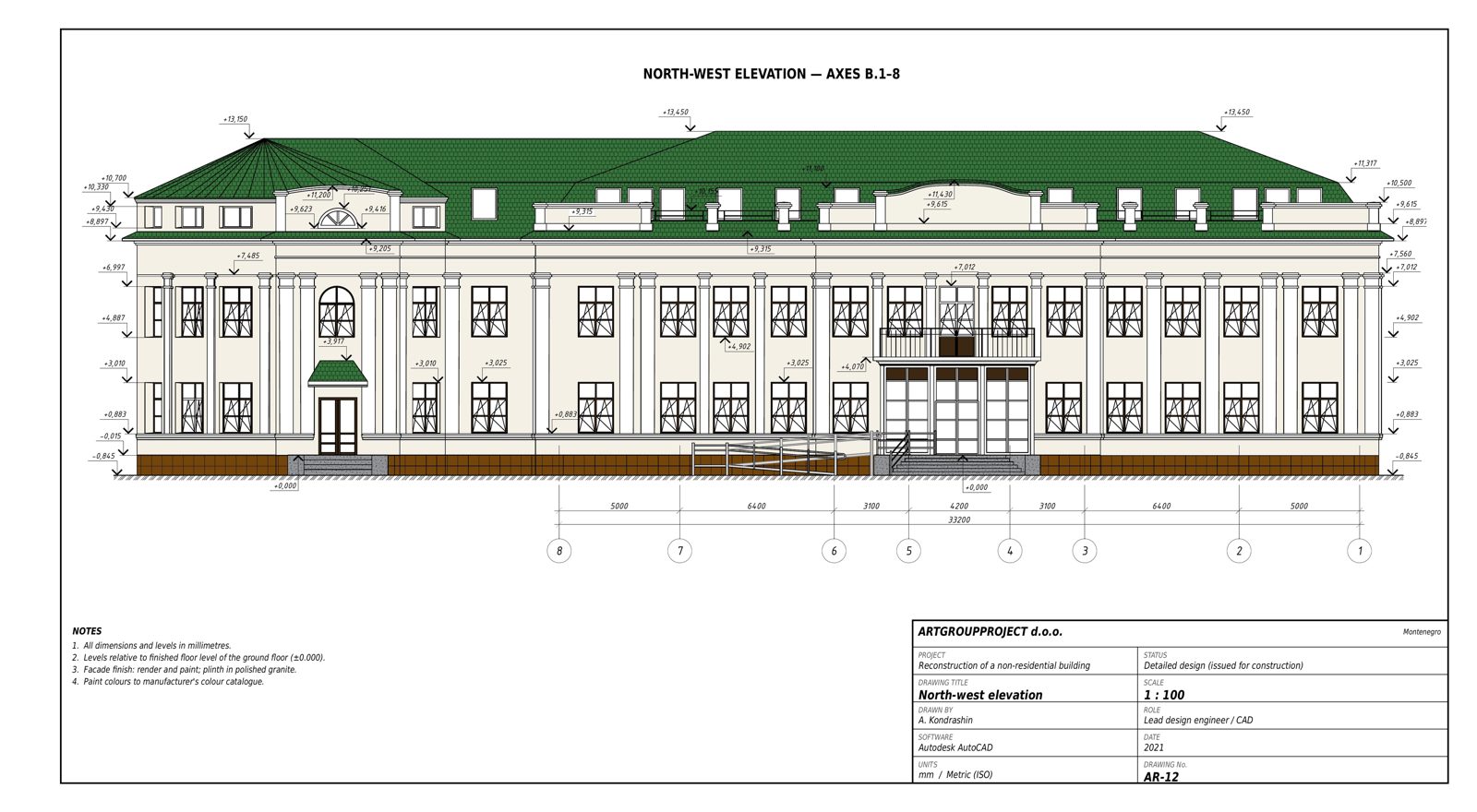

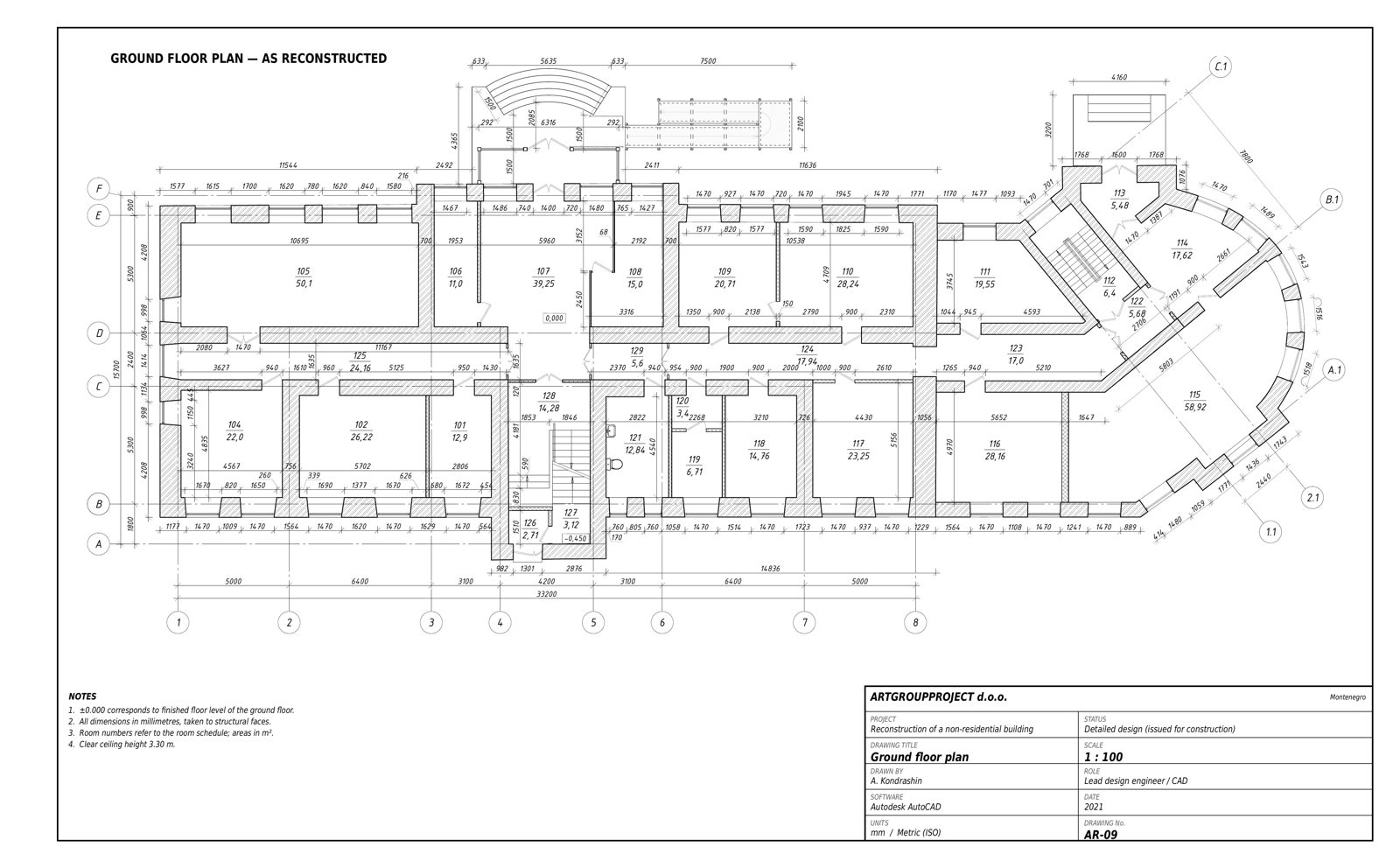

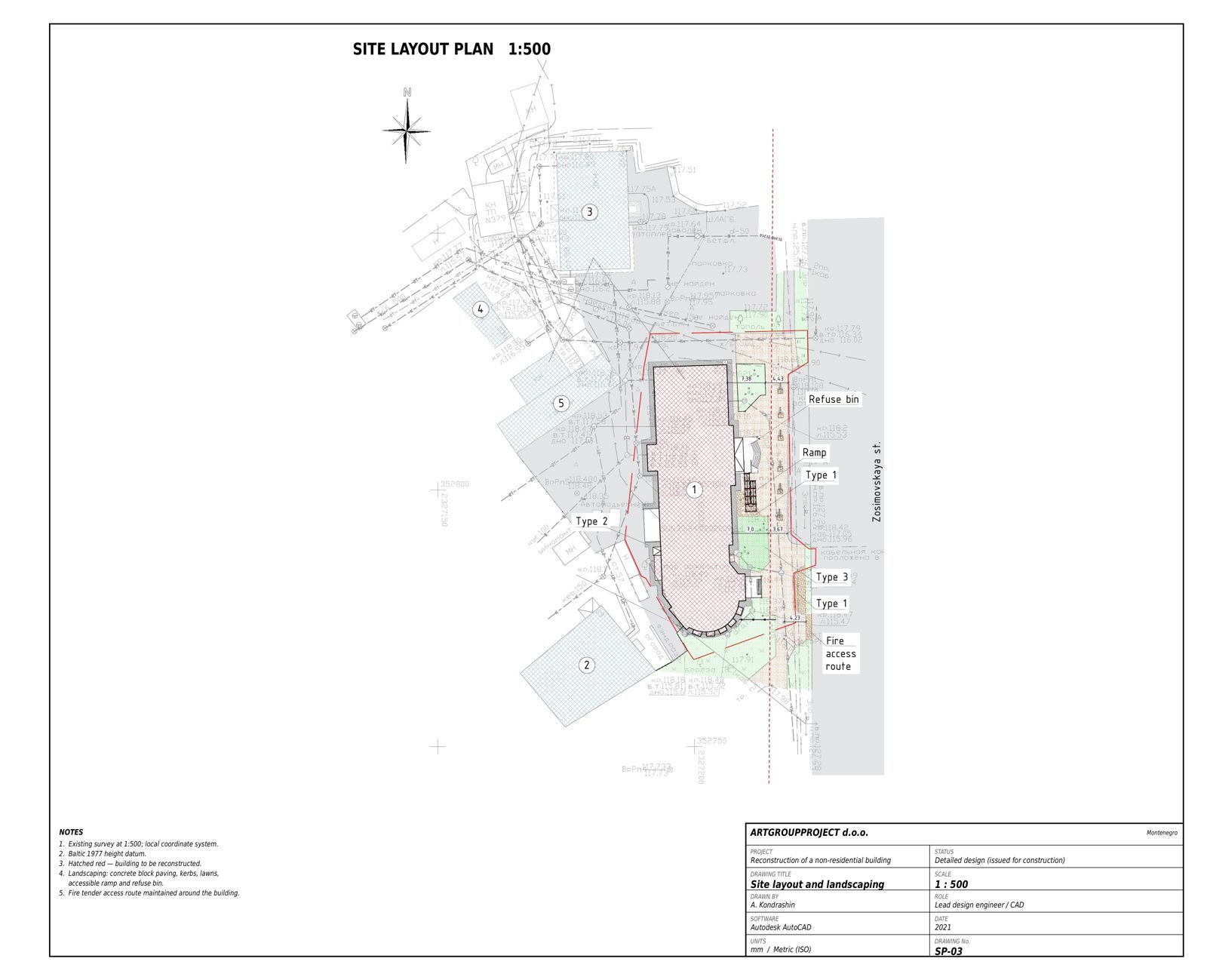

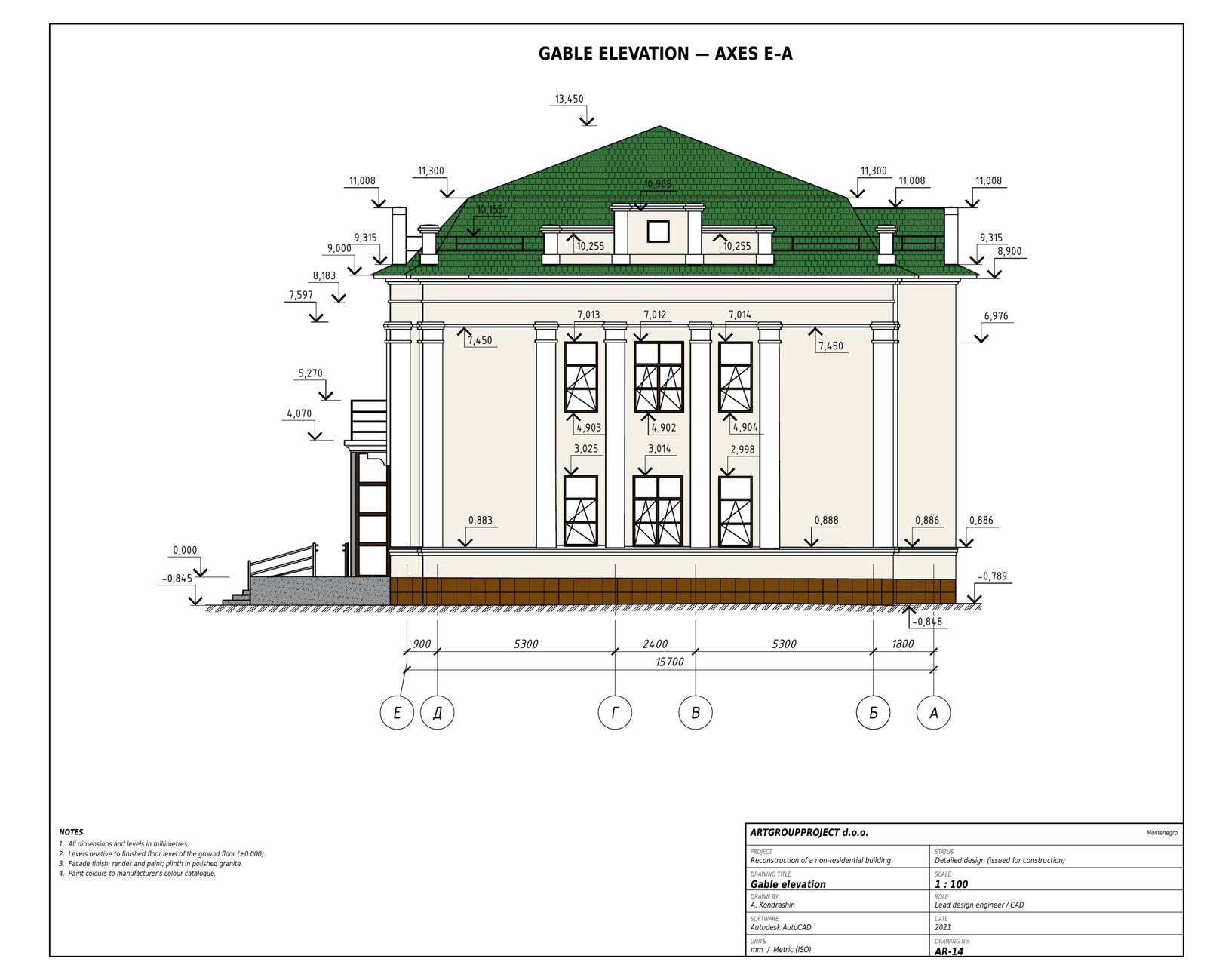

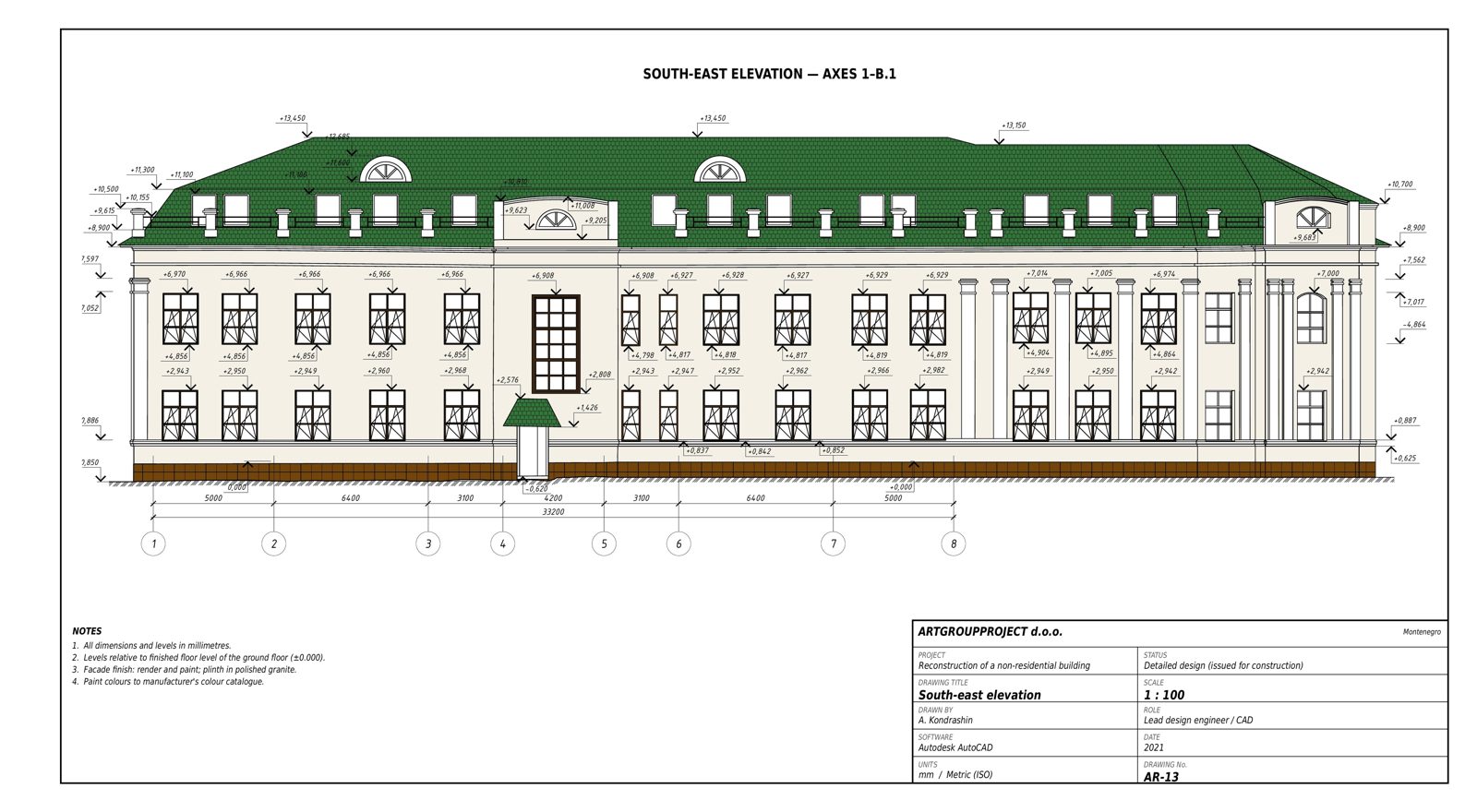

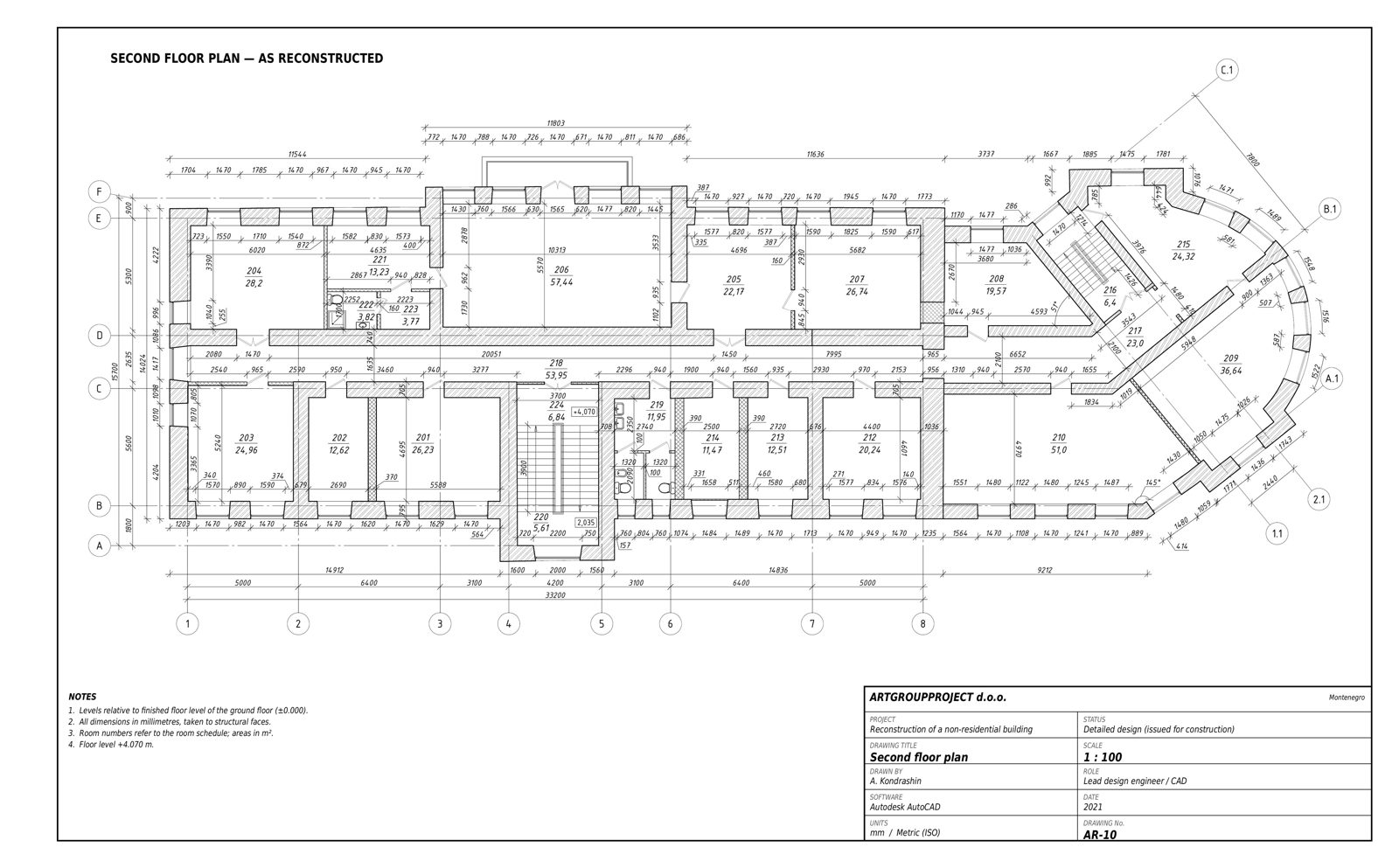

Drawing set and visualisation
8 items — drawings as issued, plus a visualisation of the completed design. Click any image to open it full size.
