Scope and output
A new-build administrative building composed of two interpenetrating volumes: a single-storey enclosed staff car park on grids 1–5 with a clear height of 6.50 to 7.70 m, and a two-storey administrative block on grids 5–7 at 3.00 m storey height. Rectangular on plan, 33.8 × 12.8 m including the projecting plinth, no basement. Structure is a steel frame on hot-rolled I-section columns over a monolithic reinforced concrete raft, with precast concrete floor slabs across the administrative part.
Envelope: three-layer sandwich panels 150 mm with a basalt mineral wool core, R = 3.08 m²K/W, to EN 14509 — the same system to walls and to the monopitch non-trafficable roof. PVC windows with two-cavity insulating glazing, R = 0.64 m²K/W, tilt-and-turn, airborne sound reduction 34 to 36 dB(A). The car park is served by two automatic sectional doors 3 500 × 4 000 mm. The main entrance at +0.900 has a canopy, external steps and an access ramp with handrails.
Key figures: site 0.2 ha, gross floor area 432.64 m², car park 293.0 m², building volume 3 206.19 m³.
Drawing set and visualisations

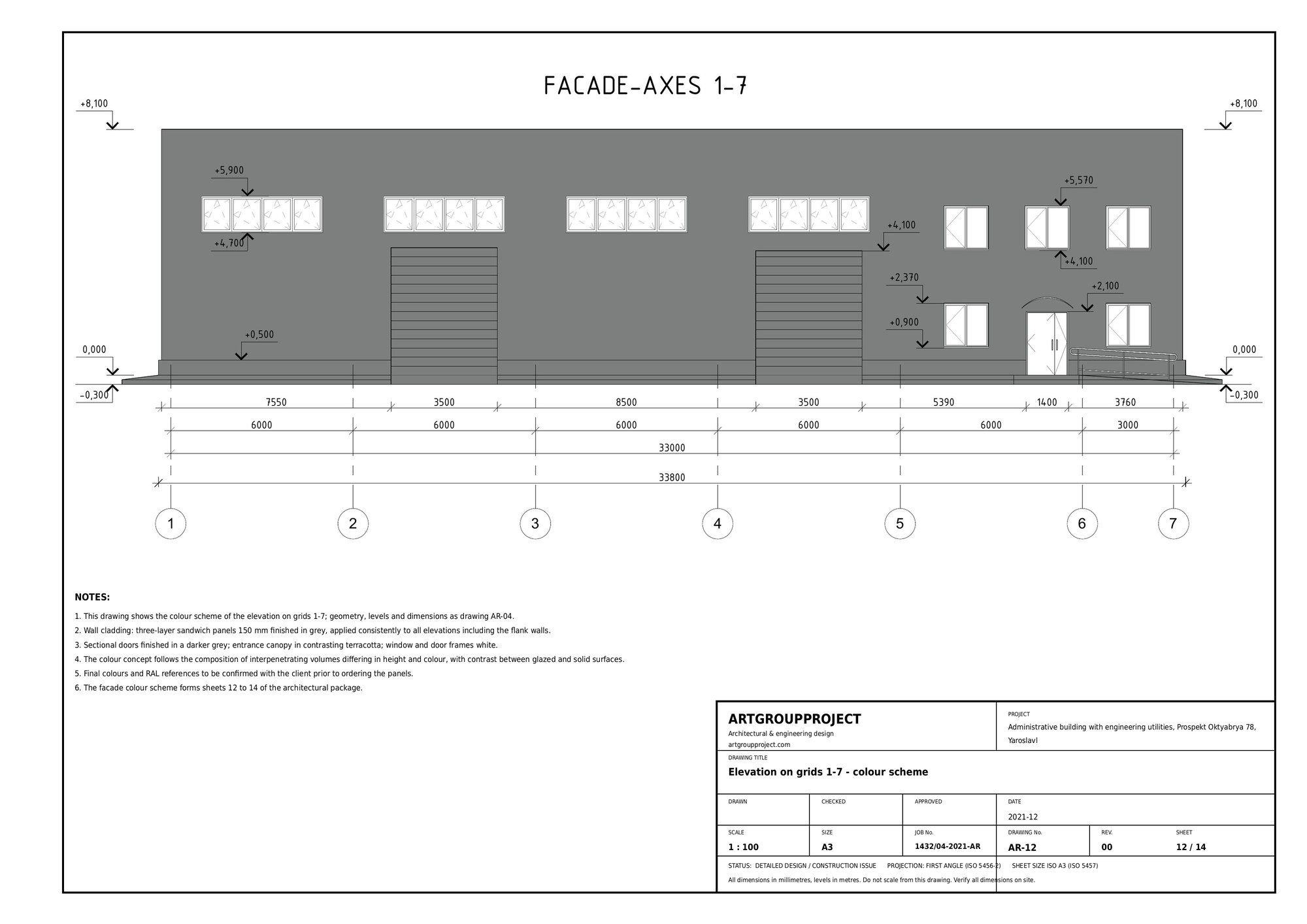

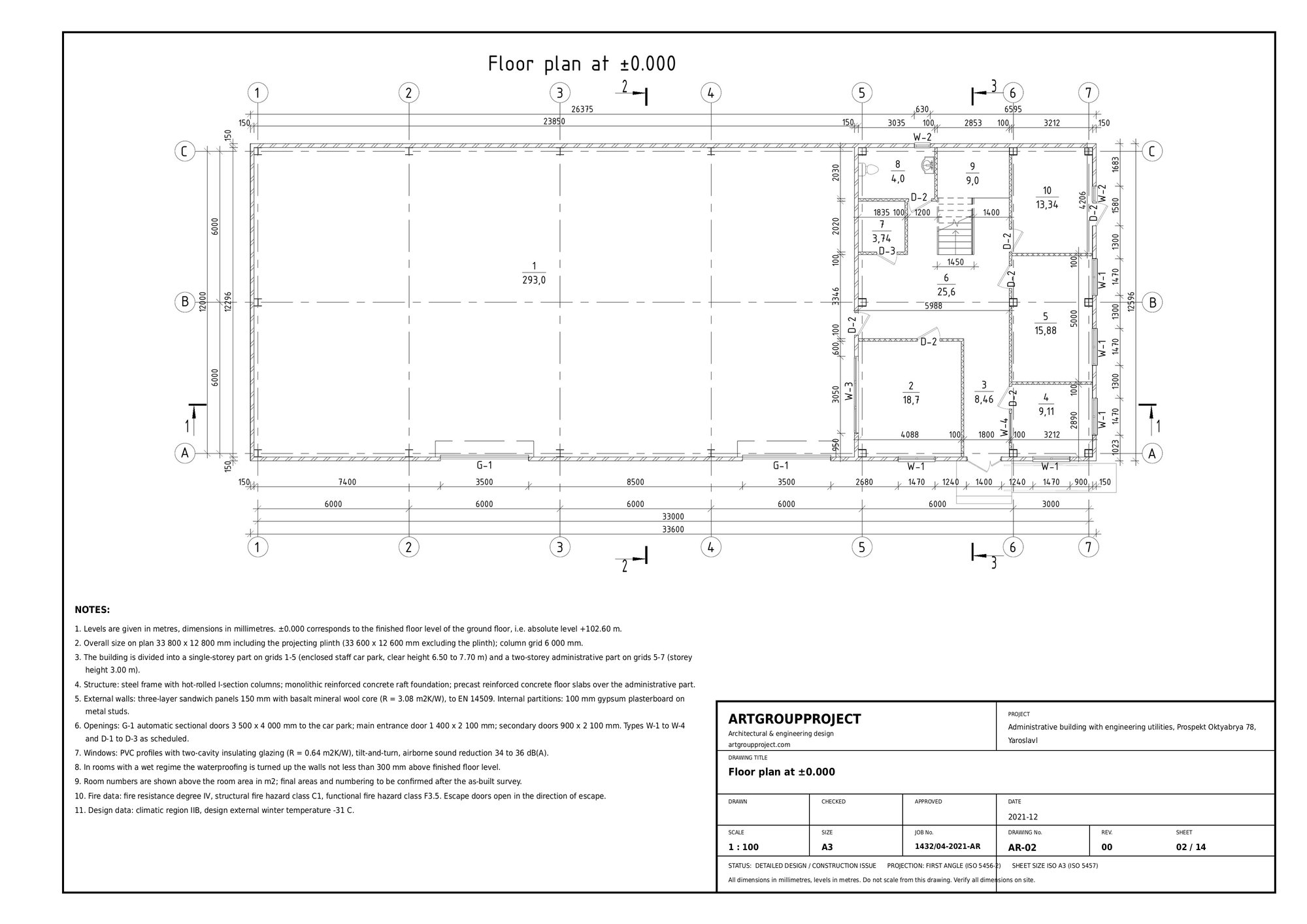

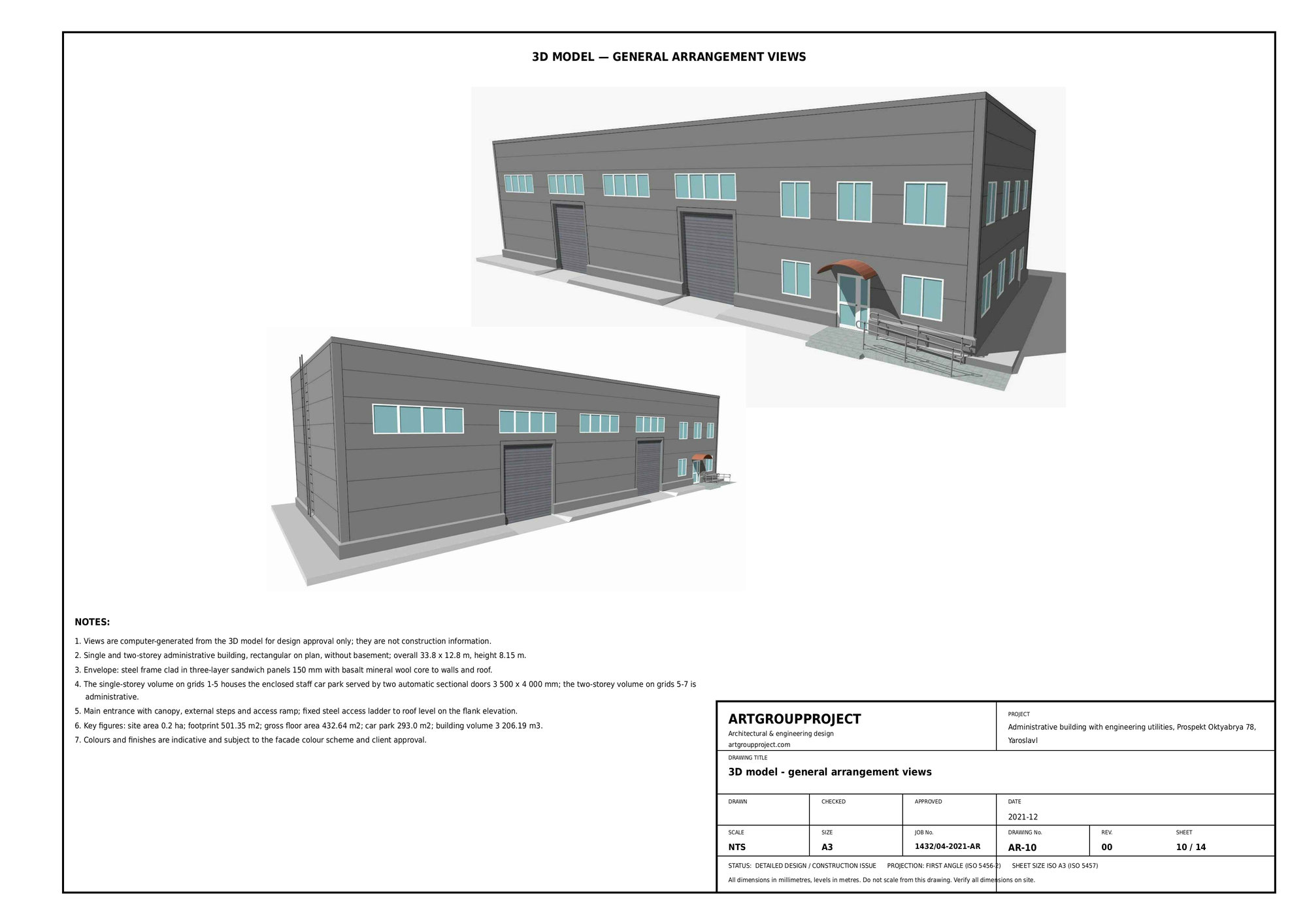

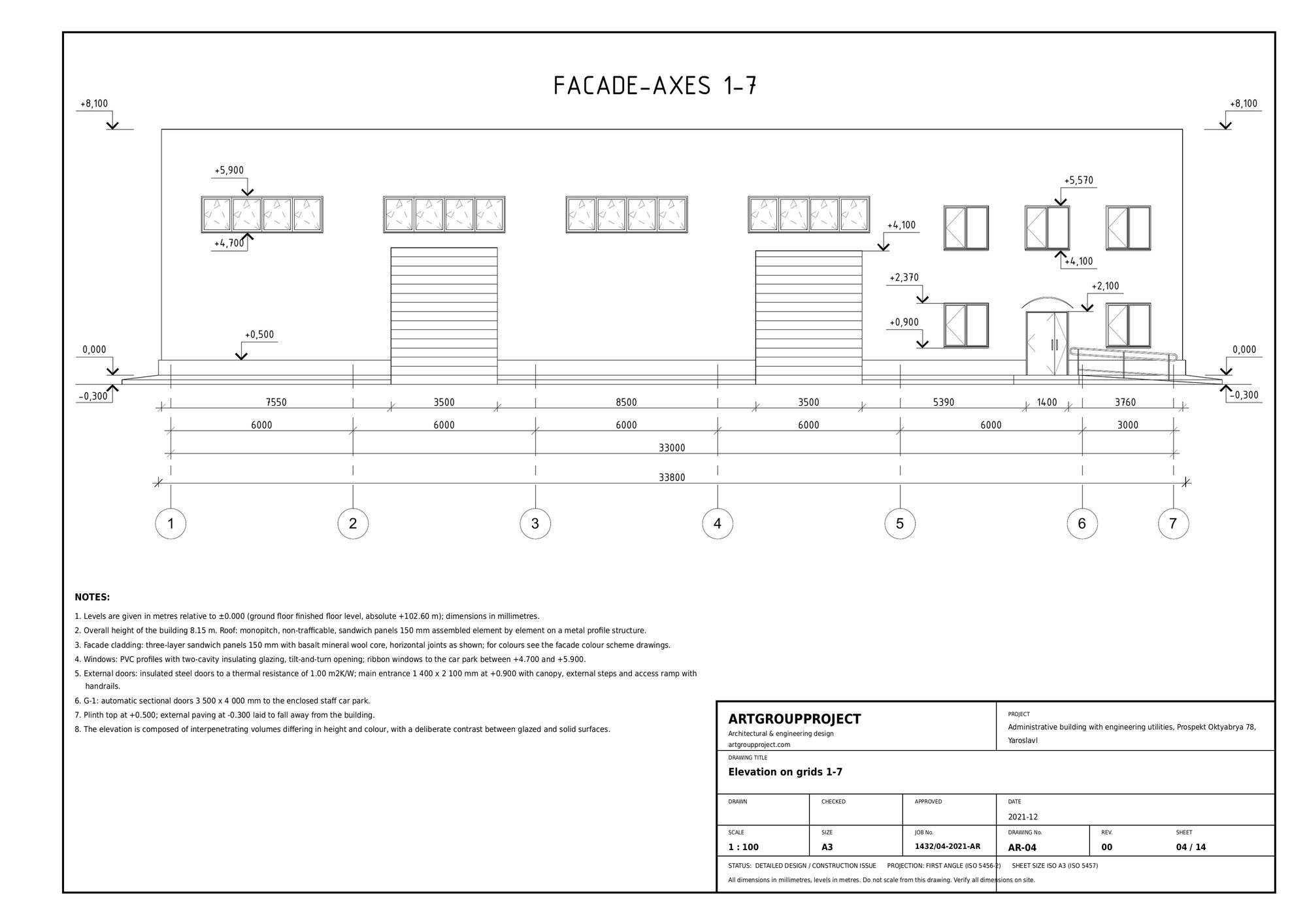

6 items — drawings as issued, plus visualisations of the completed design. Click any image to open it full size.
